Heating&cooling
Features
> Selection of dehumi or humidity
> Correction of the present humidity
> Temperature display + Humi
> High temperature (85℃)
> Heating element for prevention of dewy
Product Data
Specification
Operating Range | 0 ~ 100% RH |

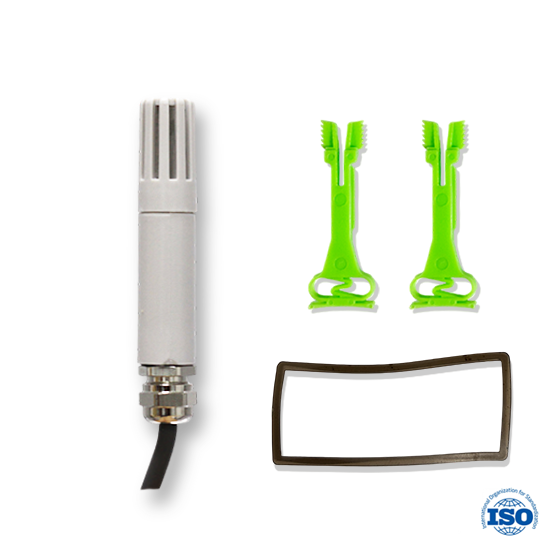

Input sensor | DS-SH-series |
Display Accuracy | ±2%rdg ±1digit |
Output | 1 relay (1c 250VAC 2A) |
Programming | Set / Up / Down key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Order production | 110VAC 50/60Hz 12V AC/DC ±10% |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 380g |

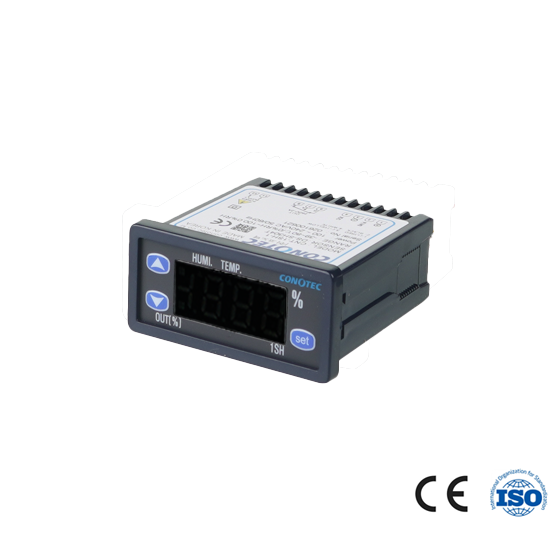

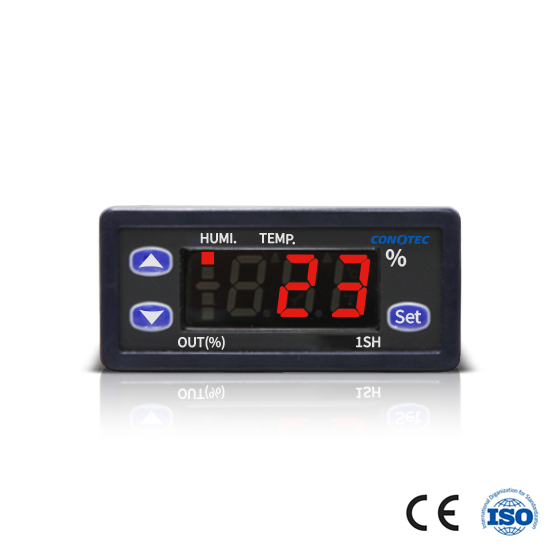

Part name
※ Humidity display and control + temperature display for the currency status display,
there're 2 kinds of mode, as a switch of <Up(increase)/DN(decrease)>,
you can change the display like "Humi./Temp".

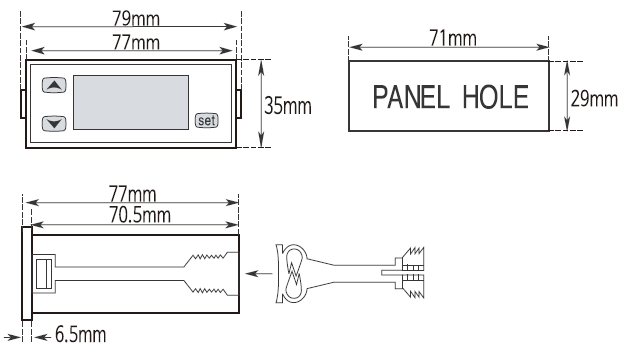

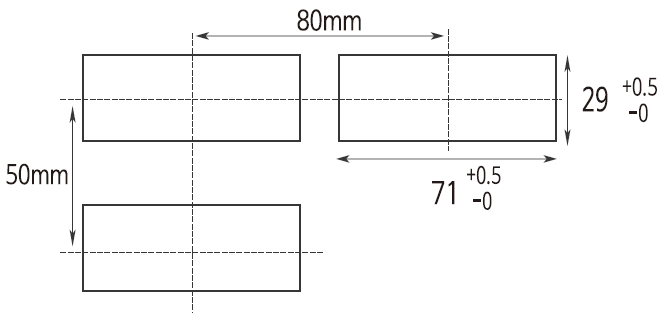

Size & Dimension

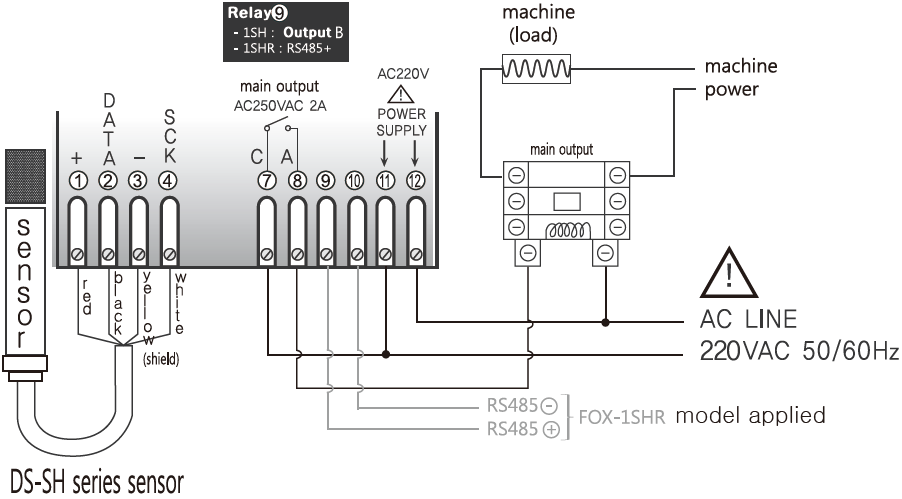

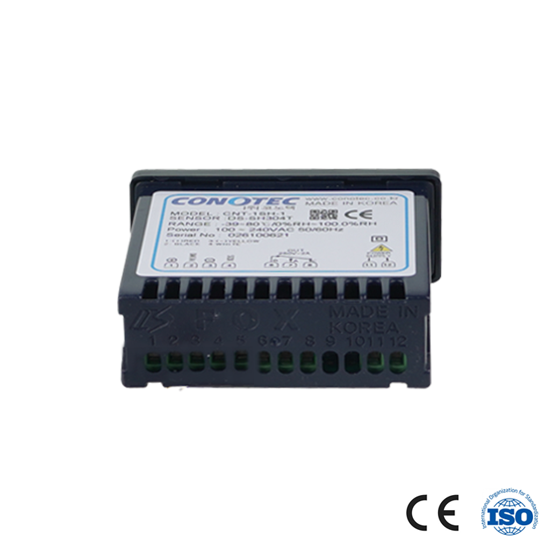

Connection
※ Please make use of the shield wire when lengthening of the sensor wire,
and in case of using in the high temperature range of 65℃ ~ 80℃,
surely use the high temperature using wire (Teflon wiring).
※ Please make the operating machine be driven with using the power relay or magnet surely
because its output specification of inside relay is less than 250VAC 2A.
