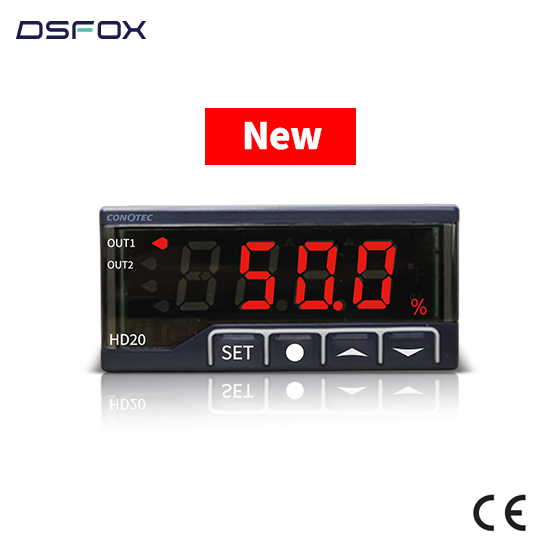

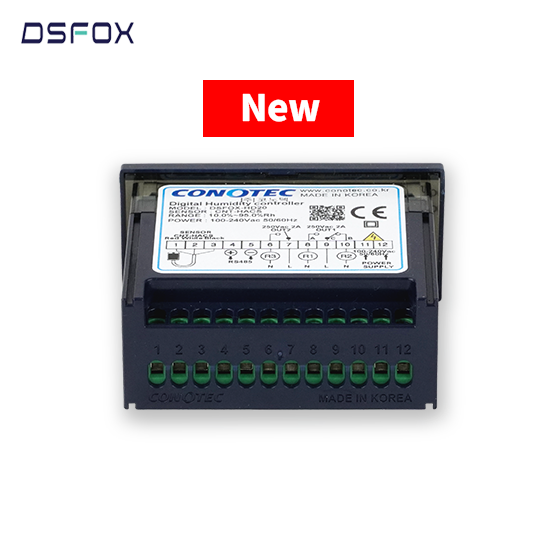

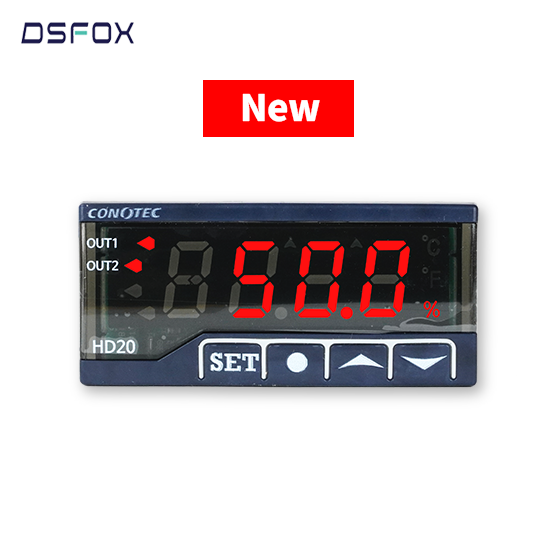

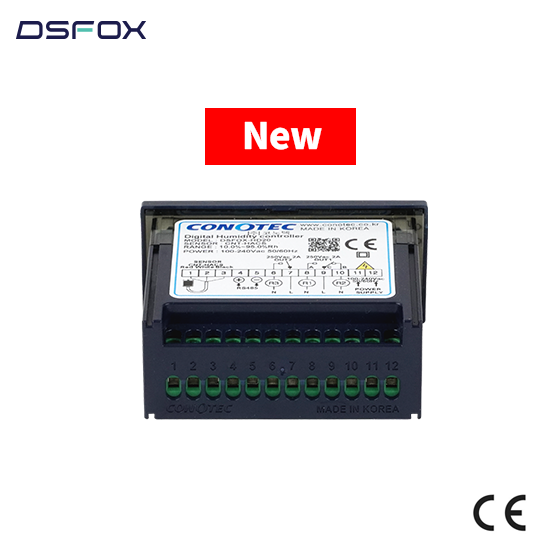

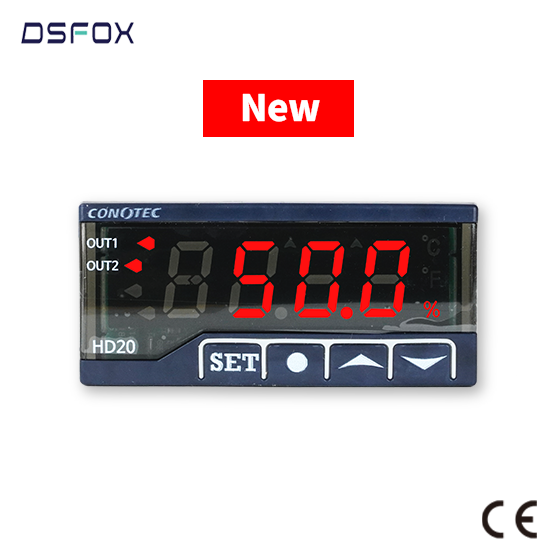

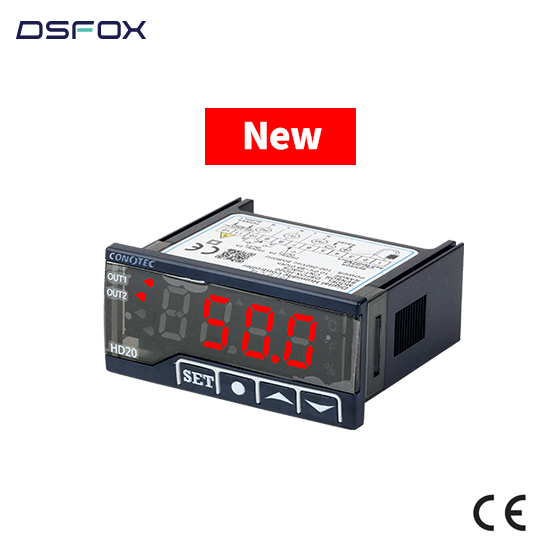

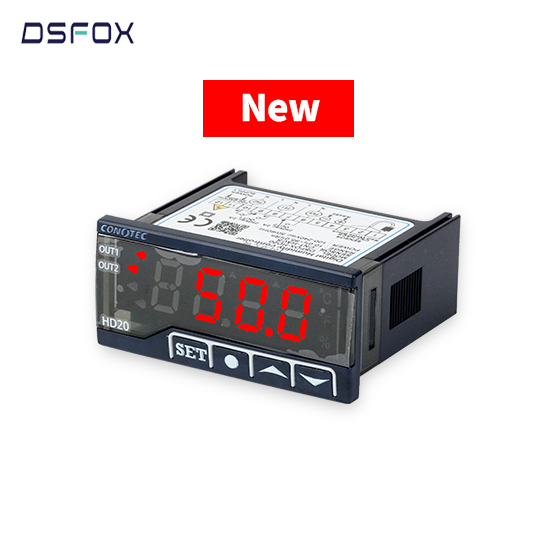

DSFOX-HD20 (New Model)
· Digital Humidity Controller / 2 Relay / Dehumidification, Humidification Selectable
Features
> Selection of a dehumidifier or humidifier
> Correction of the present humidity

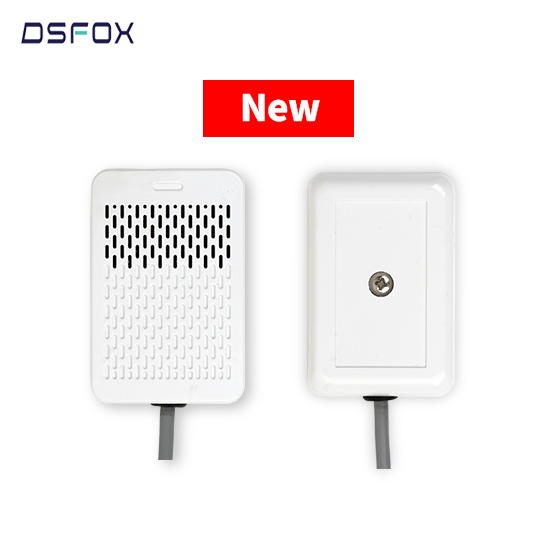

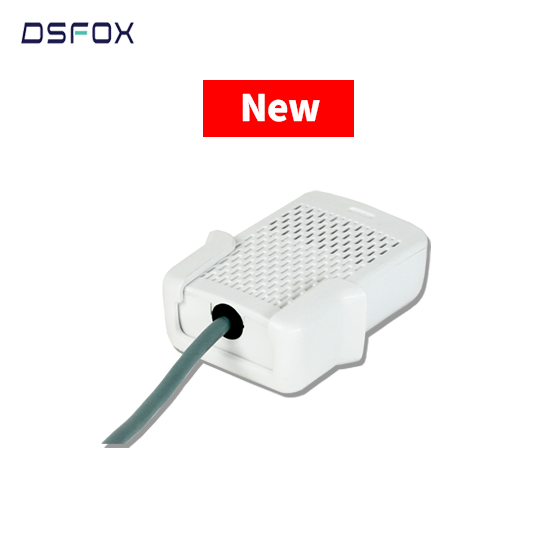

> USE CNT-HACS Sensor
> 2 relay (1c 250VAC 2A)
> RS-485 Communication
Product Data
Specification
Operating Range | 10 ~ 95% RH |
Input sensor | CNT-HACS |
Display Accuracy | ±5%rdg ±1digit |
Output | 2 relay (1c 250VAC 2A) |
Programming | Set / Up / Down key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Function | Dehumidifier or Humidifier Control / RS-485 Communication |
Gross Weight 1PC | 0g |
Part name
Size & Dimension
Connection
