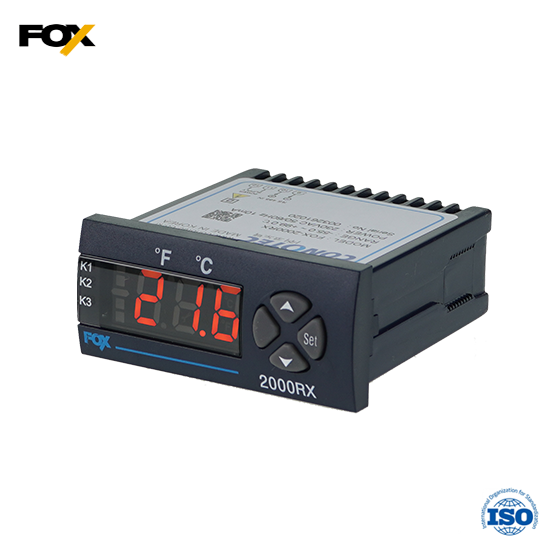

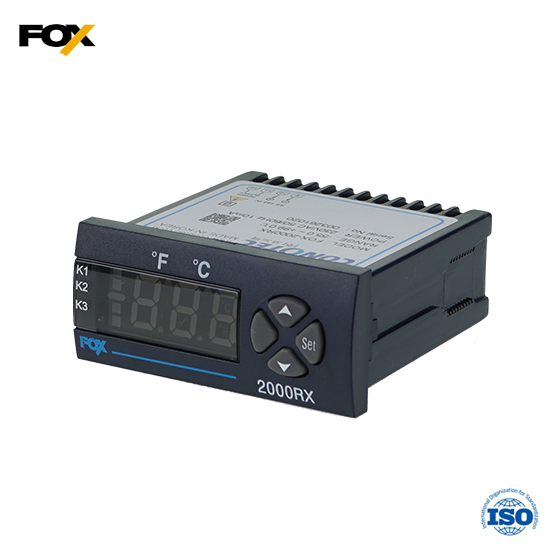

FOX-2000RX
· Remote Monitoring / 1:1 Communication with 2001TX, 2002TX, 2003TX / Celsius, Fahrenheit Display Selection

Features

> RS 485 Communication

  (Maximum 1.2km)

> Celsius / Fahrenheit

> 1:1 Communication with FOX-2001TX,

   FOX-2002TX, FOX-2003TX

Product Data

Specification



 Size

 77(W) x 35(H) x 78(D)

 Operating Range

 (Celsius) -55.0 ~ 99.9℃

 (Fahrenheit) -67 ~ 212℉

 Input sensor

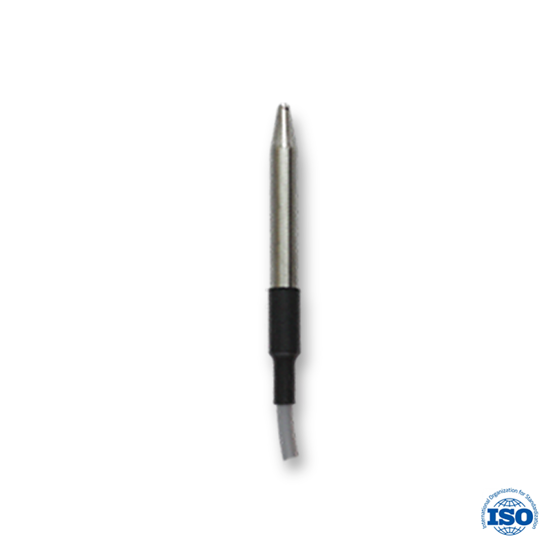

 NTC(10KΩ) 3M

 Display Accuracy

 ±1%rdg ±1digit

 Output

 3 relay (3a 250VAC 2A)

 Control Method

 ON / OFF

 Power Supply

 230VAC 50/60Hz

 Ambient Temp/Humi

 0 ~ 55℃ (32~131℉)

 35 ~ 80% RH

 Gross Weight 1PC

 190g

Part name










Size & Dimension





Connection
