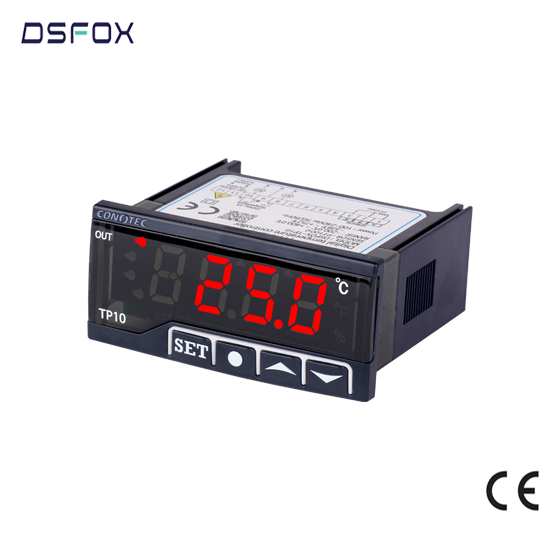

DSFOX-TP10
· DSFOX-TP10

Features

> Cooling or heater control

> Output time delay setting

> Current temperature correction

   function

> MODBUS 485 Communication

Specification


 Size (mm)

 77(W) x 35(H) x 66.5(D)

 Operating Range

 (Celsius) -200.0 ~ 400.0℃

 (Fahrenheit) -328 ~ 752℉

 Input sensor

 PT100Ω

 Display Accuracy

 ±1%rdg ±1digit

 Output

 1 relay (1c 250VAC 2A)

 Programming

 Set / Up / Down / Back Key

 Control Method

 ON / OFF

 Power Supply

 100~240VAC 50/60Hz

 Ambient Temp/Humi

 0 ~ 55℃ (32~131℉)

 35 ~ 80% RH

 Function

 Temp.

 Cutting size (mm)

 71(W) X 29(H)

 Gross Weight 1PC

 133g

Part name






Size & Dimension
