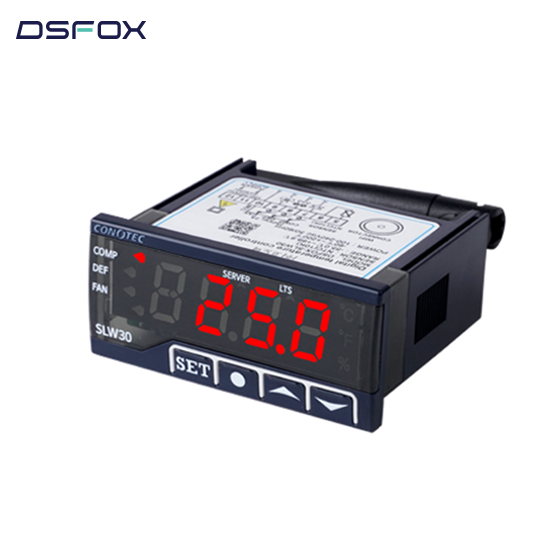

IOT
Features
> Compressor / Defrost / Fan Control (3 Relay)
> Selectable Periodic Defrost or Compressor Accumulation Defrost
> Selectable Celsius ℃ / Fahrenheit ℉

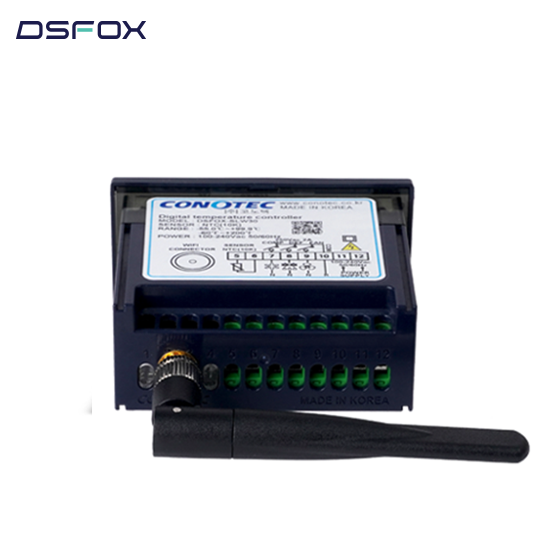

> Wi-Fi Communication (TCP/IP), Integrated Standard Antenna
> Optional Extended Antenna Available (5m, 10m)
> Real-time Monitoring via IOT Server Integration
▶ Want to know more about IOT Controller advantages ?(Click)
Product Data
Specification
Size (mm) | 77(W) x 35(H) x 66.5(D) |
Operating Range | (Celsius) -55.0 ~ 99.9℃ (Fahrenheit) -60 ~ 200℉ |
Input sensor | NTC(10KΩ) |
Display Accuracy | ±1%rdg ±1digit |
Output | 3 relay (3a 250VAC 2A) |
Programming | Set / Up / Down / Back Key |
Control Method | ON / OFF |
Power Supply | 100~240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Function | COMP / DEFROST / FAN / WIFI COMMUNICATION |
Cutting size (mm) | 71(W) X 29(H) |
Gross Weight 1PC | 227g |
Part name
Size & Dimension
Connection
with CONOTEC
