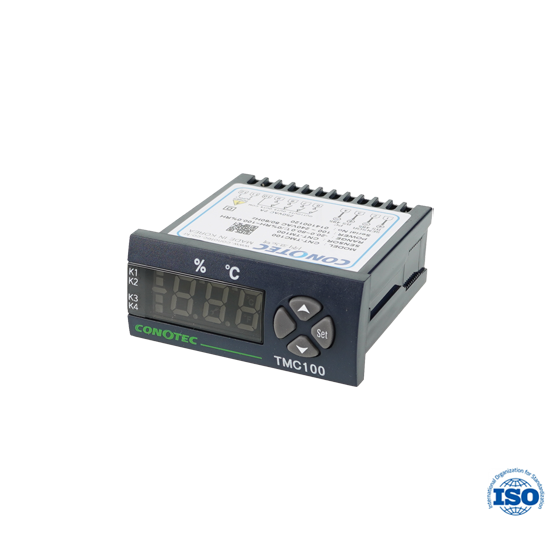

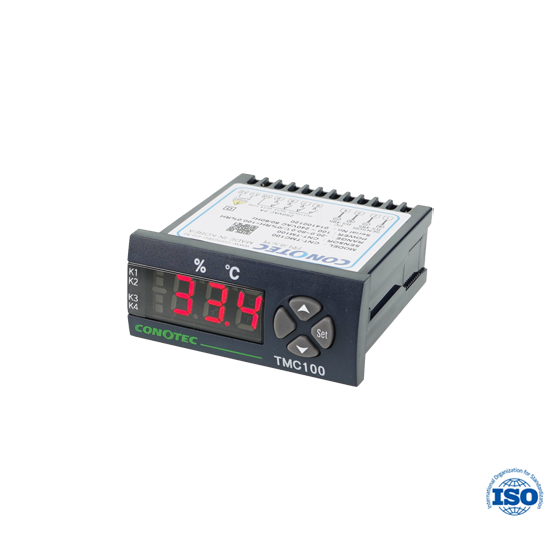

CNT-TMC100
· CNT-TMC100
Features
> Maximum extension Length : 1.2KM
> Up to four sensors can be installed
> Available in 4 outputs
-Temperature output control
-humidity output control
-temperature alarm output
-humidity alarm output
> PC Communication Available
(485 Modbus RTU)
Product Data
Specification
Operating Range | (Temp.) -20℃~ 80℃ (Humi.) 0% ~ 100%RH |
Display Accuracy | ±1%rdg ±1digit |
Style of instruction | 250VAC 2A 릴레이 4EA |
Control Method | 7 segment 0.51inch 4Digit |
Power Supply | 100~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |

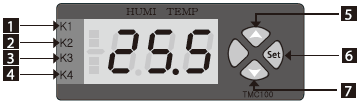

Part name

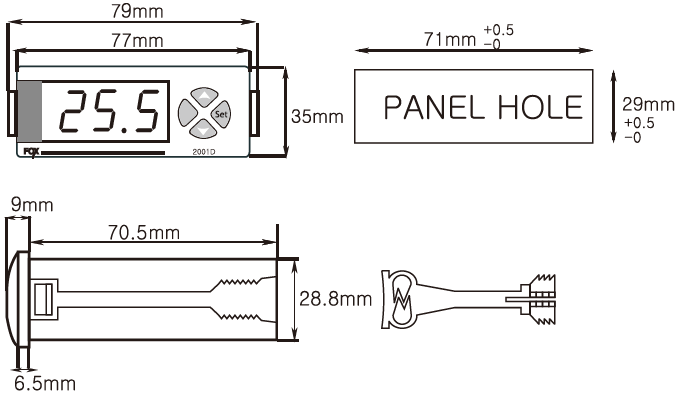

Size & Dimension

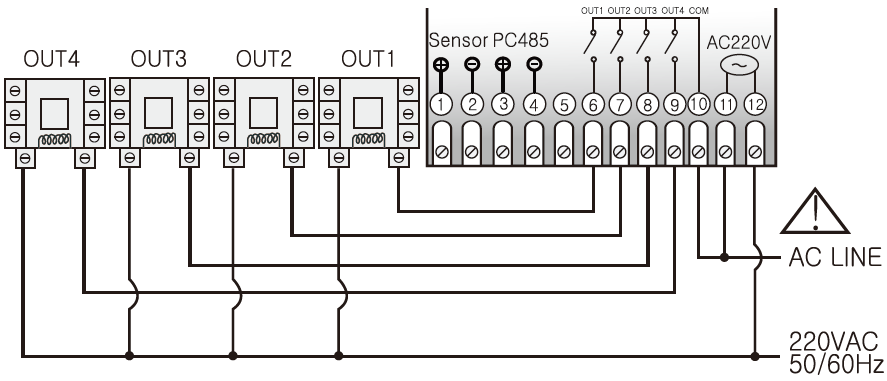

Connection
