Smart farm
Home > PRODUCT > Smart farm

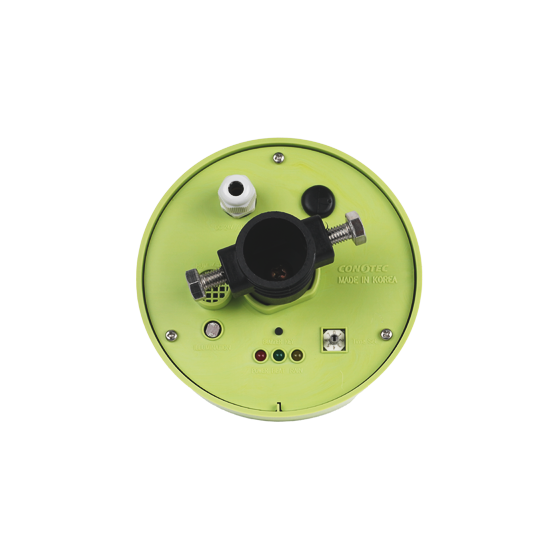

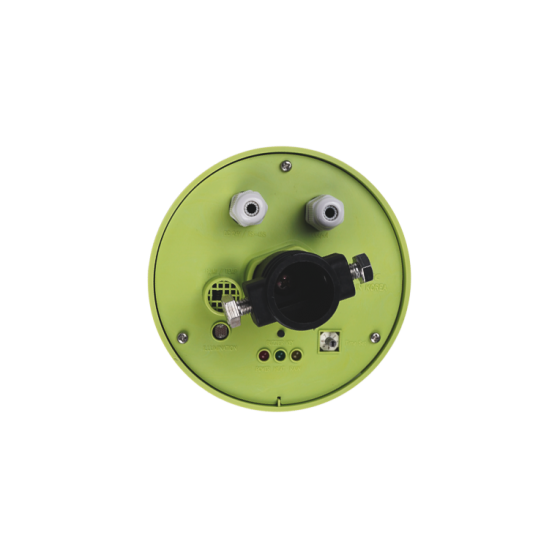

CNT-WJ24, WJ24-1
· CNT-WJ24, WJ24-1
Features
> Opening and closing of a vinyl
greenhouse with OPEN/CLOSE
contact signal due to rain sense
> Rain Sense, Day/ Night Sense,
Temp, Humidity Measurement
> Buzzer alarm function
when dirt is on the rain sensor
> Bird anti-sitting pins prevent sensor
malfunction
> PC Communications Available
(RS485 Modbus RTU)
> Power supply : DC24V / AC24V
Product Data
Specification
Model | Rain Sensor |
Operating Range | (Temp.) -55 ~ 99.9 (Humi.) 10% ~ 90% |
Sensor | (Temp.) NTC10K (Humi) SYH-2R |
Control Method | Relay Interface (2EA) |
Power | More than 24 VDC 500mA |
Function | 강우 감지 출력 제어 RS 485 |
Part name
Size & Dimension
Connection
with CONOTEC
