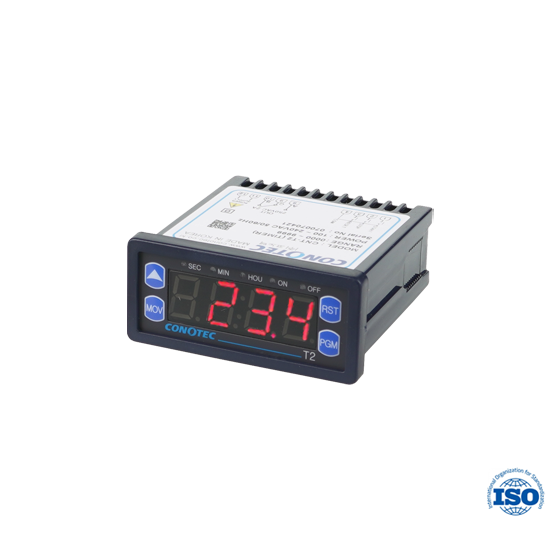

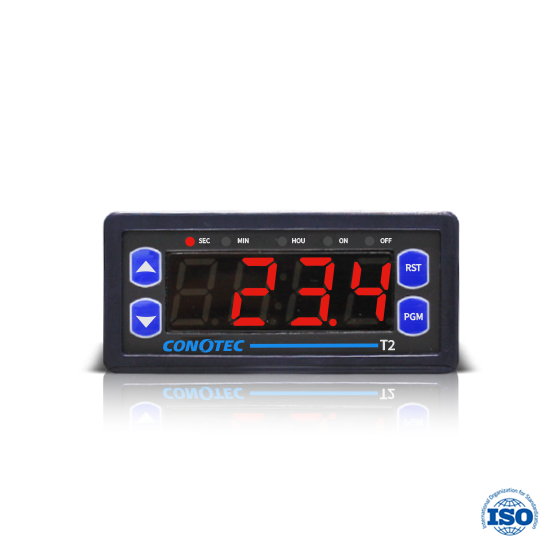

CNT-T2
· CNT-T2
Features
> Timer
> Single or Twin Timer Activation Function
> Addition / subtraction method
Product Data
Specification
Operating Range | 0 ~ 9999 |
Output | 1 relay (1c 250VAC 3A) |
Programming | Rst / Pgm / Mov / Up Key |
Power Supply | 230VAC 50/60Hz |
Order production | 110VAC 50/60Hz 12V or 24V AC/DC ( ±10% ) |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 194g |

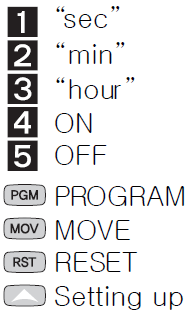

Part name

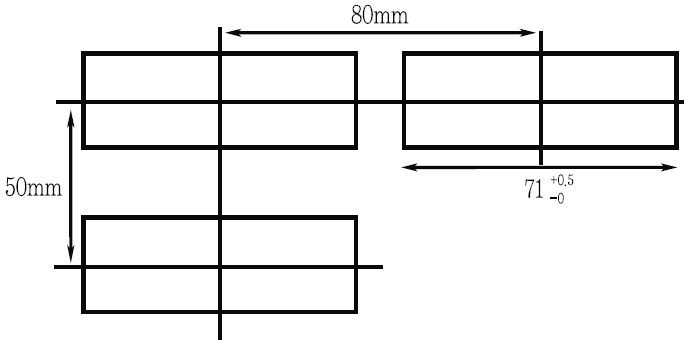

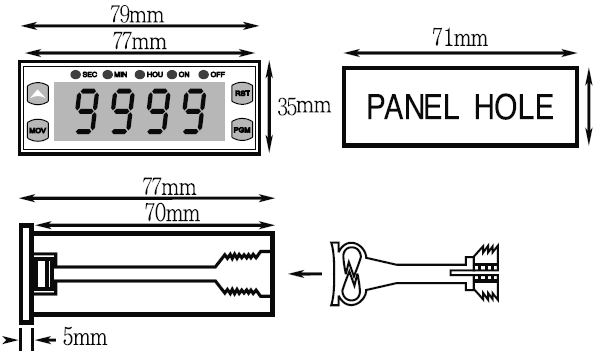

Size & Dimension

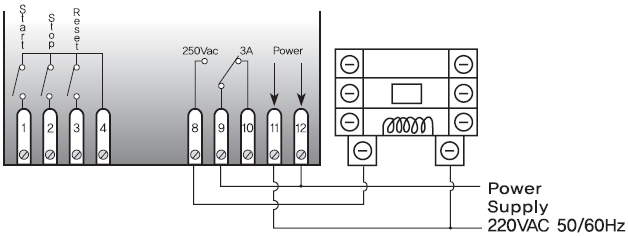

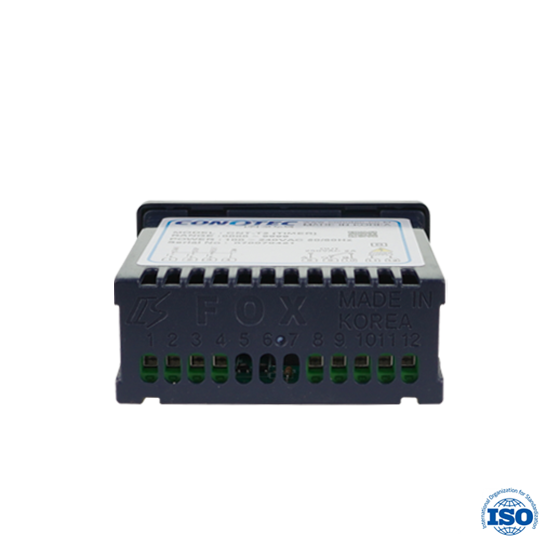

Connection
※ Output : 250VAC 2A
Please make use of the power relay or magnet surely
