FOX-CTM SERIES
· FOX-CTM SERIES
Features
> Timer / Counter Combined
> Electrostatic storage function :
Store coefficient value when power is off
(ON/OFF selectable)
> Output time can be set
(0.01 seconds to 99.99 seconds)
> External inputs : CP1 (START),
CP2 (INHIBIT), RESET, BATCH RESET
(NPN/PNP method selectable)
Product Data
Specification
Size | FOX-CTM5 : 96*48 FOX-CTM7 : 72*72 |
AC Power | 100~240VAC 50/60Hz |
Relay output | 2EA (1c, 1a) |
Capacity | 250VAC 2A Resistive load |
Open Collector(Tr) output | 3EA |
Volume | 30VDC Max, 100mA Max |
External Power | 12VDC ±10%, 200mA Max |

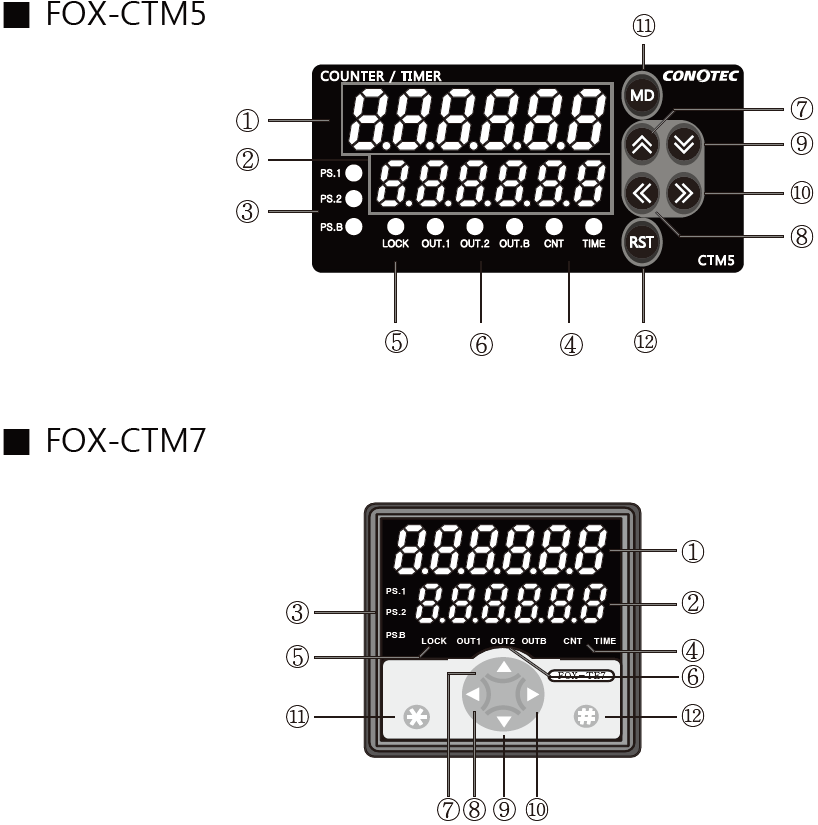

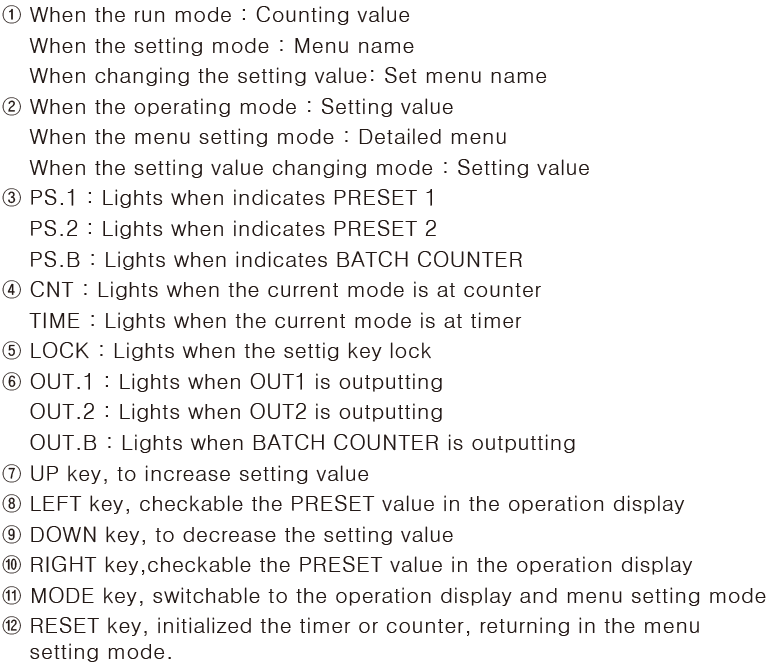

Part name

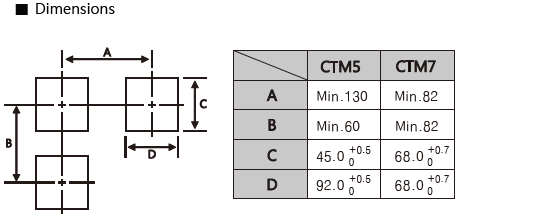

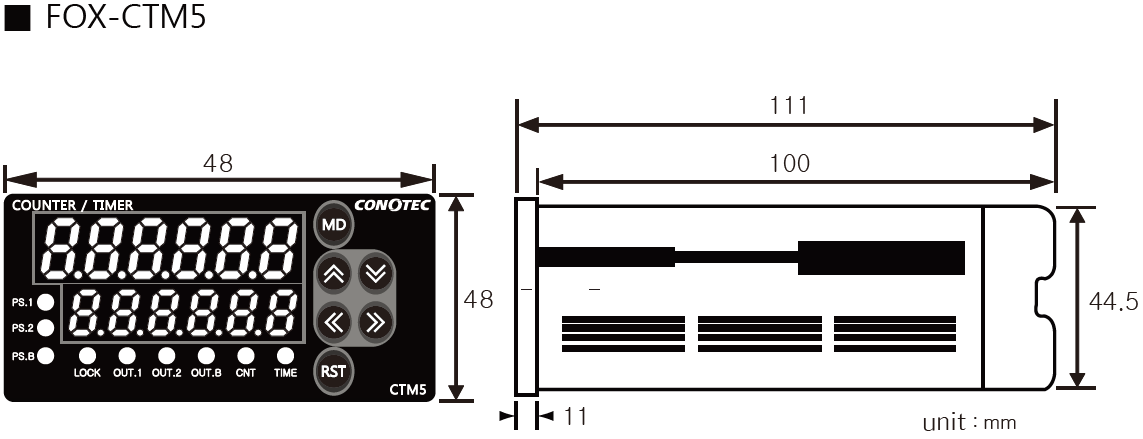

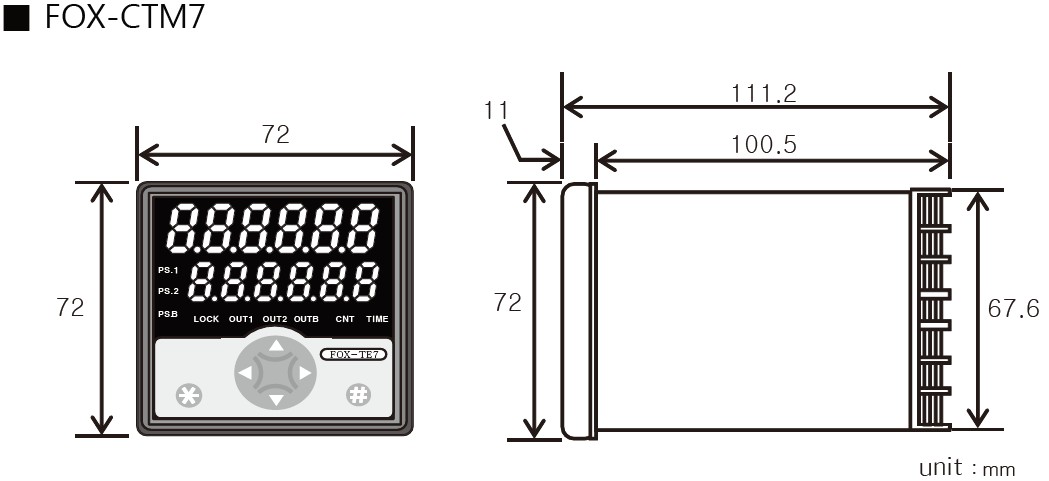

Size & Dimension
Connection
