FOX-485U
· FOX-485U
Features
> Wire/wireless converter
(available up to 5~7 VDC)
> TX Enable automatic generation
(Operating irrespective of
control signal condition)
> Internal terminating resistance (120Ω)
> The communication is available with
data transfer rate between 1200 and
115200 BPS without control signal
Product Data
Specification
Type | USB |
External power | 5~7VDC |
Outer dimension | 54(W) x 59(H) |
Operating distance | less than 1.2KM |
Data transfer rate | 최대 1,200 ~ 115,200bps (Recommanded 9600bps) |
Connection by | USB extention cable |
Insulation type | Non-insulation |
Gross Weight 1PC | 88g |

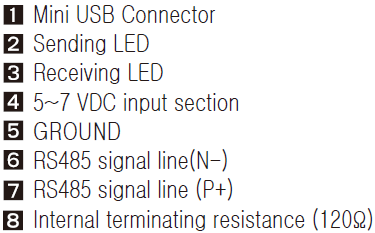

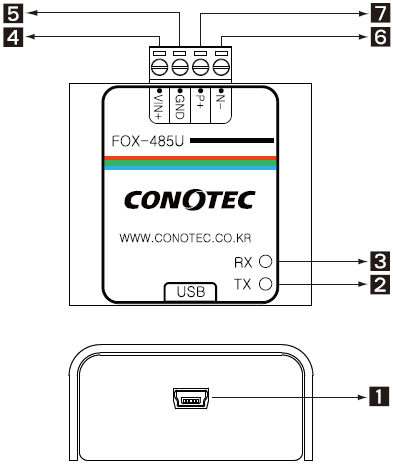

Part name

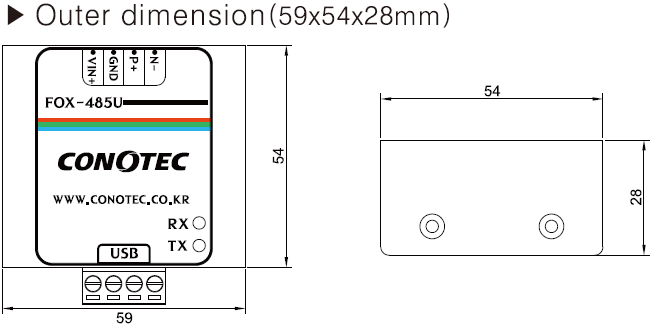

Size & Dimension

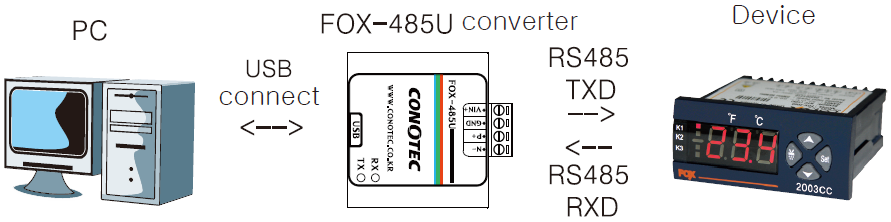

Connection
with CONOTEC
