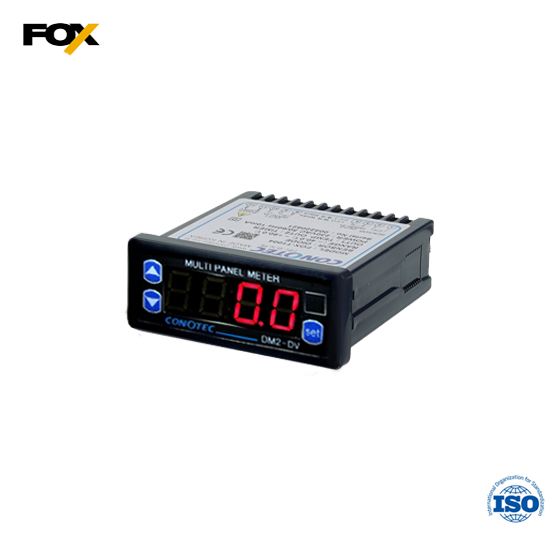

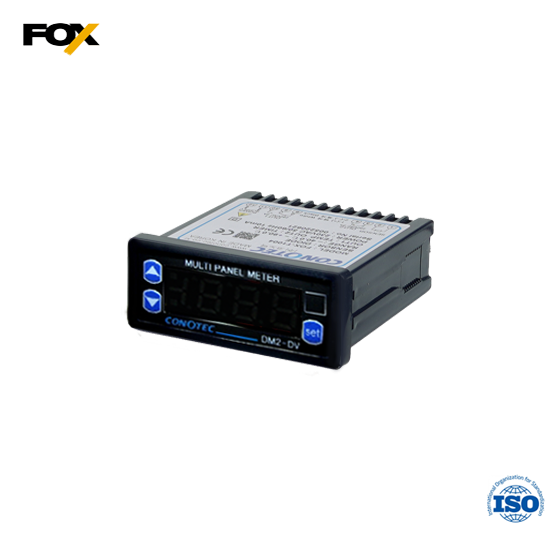

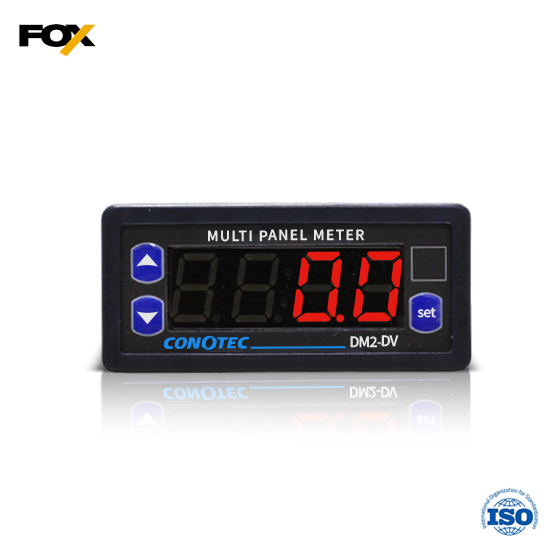

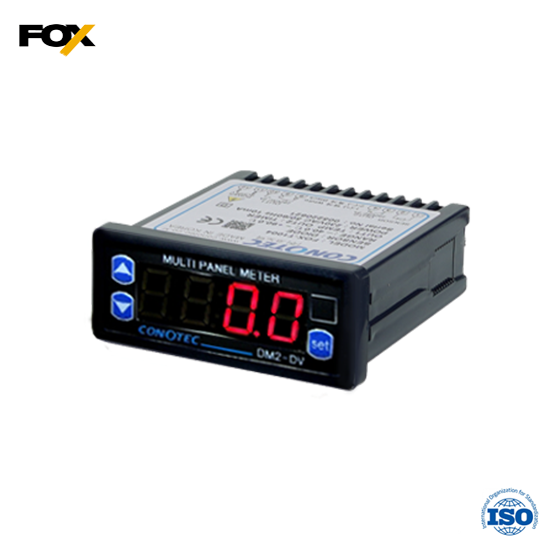

DM2-DV
· DM2-DV
Features
> Multi-Panel Meta
> 8 step input range
> User Scale Function
> Function to set decimal point position
> Zero and Span Calibration Function
> Measure True RMS
Product Data
Specification
Size (mm) | 77(W) x 35(H) x 78(D) | |
Accuracy | ±0.3%rdg ±3digit | |
Polarity | If DC input signal is reversed | |
Power supply | AC 110~240V | |
Output Range | 800V | |
Max input | 0 ~ 800V | |
Ambient Temp/Humi | 0 ~ 55℃ 35 ~ 85% RH | |
Gross Weight 1PC | 100g | |

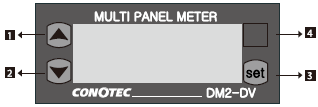

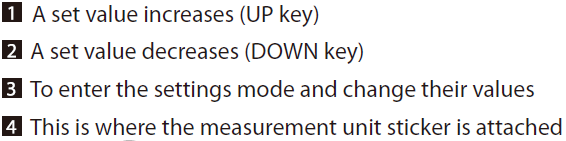

Part name

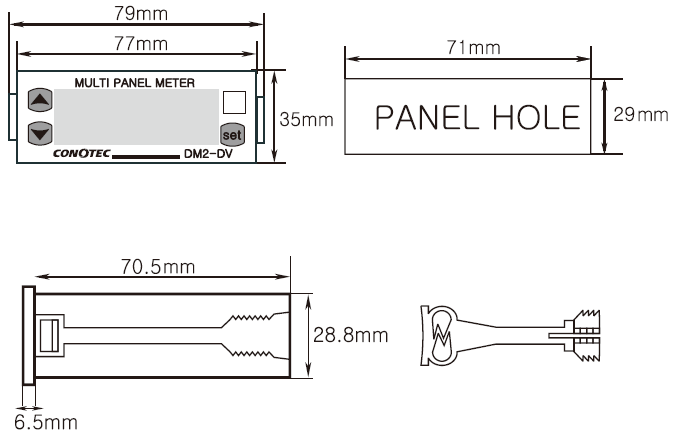

Size & Dimension

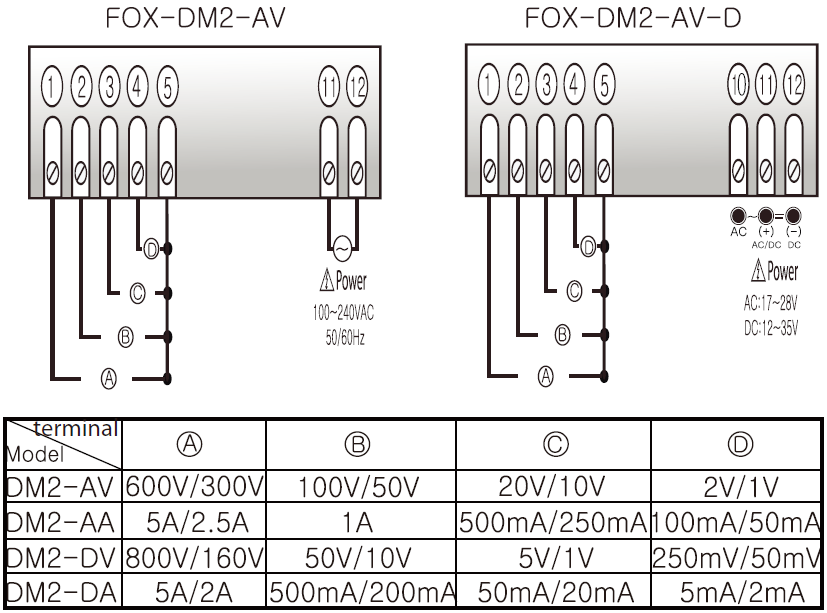

Connection
