Heating&cooling
Features
> Two outputs with current / SSR
(cycle / phase control / commom on/off)
> RS 485 MODBUS RTU available
> Hardware select function
( alarm / current / control )
Product Data
Specification
Display | 7 segment LED Display |
Sensor specifications | NTC10K = -50~99.9℃ DPT100Ω = -199~400℃ |
Display Accuracy | ±1%rdg ±1digit |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH (No formation of ice or condensation) |

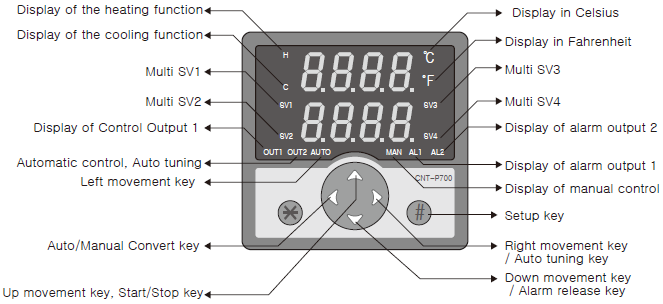

Part name

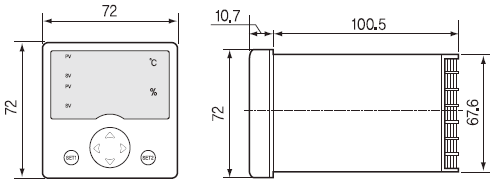

Size & Dimension

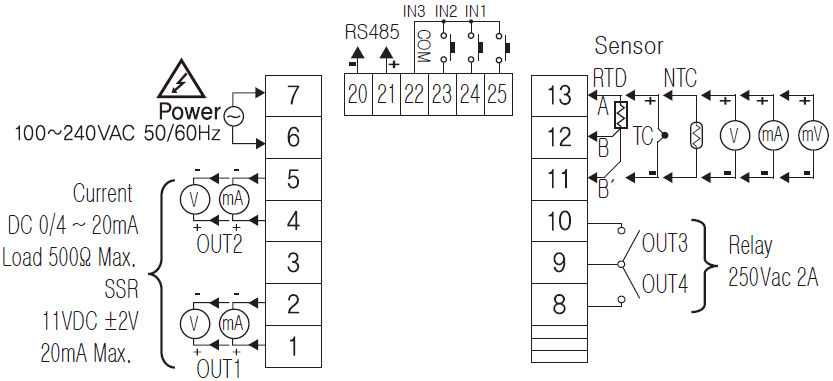

Connection
※ For wiring or replacing, please work with the power off.
※ Relay connection capacity is less than 250VAC 2A.
Please be careful as using a load exceeding the contact capacity
may cause contact fusion, connection failure, relay damage, etc.
※ To enable the cycle PID control and phase PID control with SSR,
SSR must of the Non Zero-Crossing type and its reaction speed must be within 1ms.
※ Be sure to recheck all menus' values because there are many menus
that are reset when the sensor is changed.
