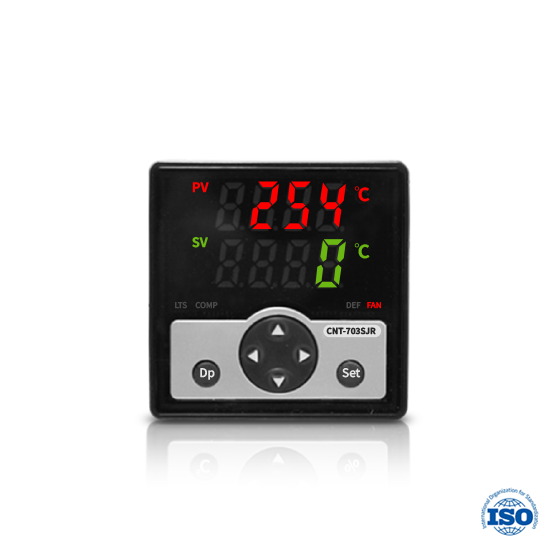

CNT-703SJR
· CNT-703SJR
Features
> For only cooling
> Defrosting
> Manual defrosting
> RS485 communicaiton
> COMP, FAN control
Product Data
Specification
Size | 72(W) x 72(H) x 110(D) |
Operating Range | -55.0℃ ~ 99.9℃ |
Input sensor | NTC(10KΩ) 3M |
Display Accuracy | ±1%rdg ±1digit |
Output | 3 relay (1c 2a 250VAC 2A) 1R (Comp), 2R (Defrost), 3R (FAN) |
Programming | Set / Up / Down / Left / Right Key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 400g |

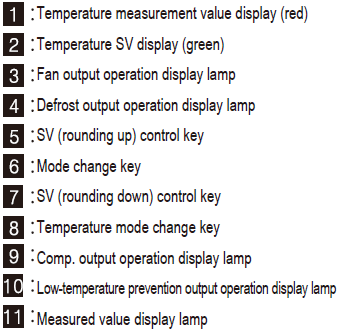

Part name
Size & Dimension

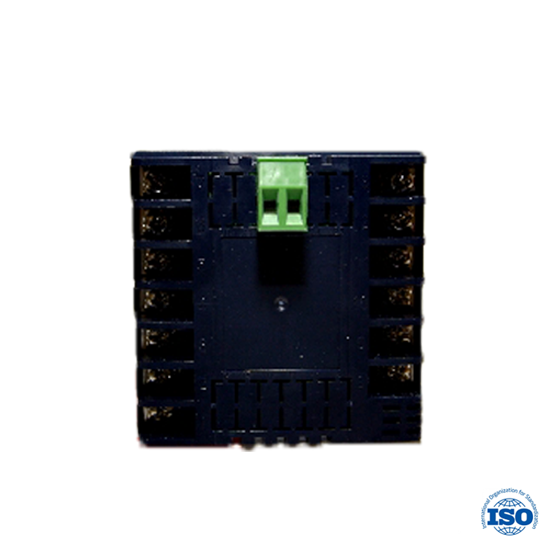

Connection
※ FAN relay 5A
※ Output : 250VAC 2A
Please make use of the power relay or margnet surely.
