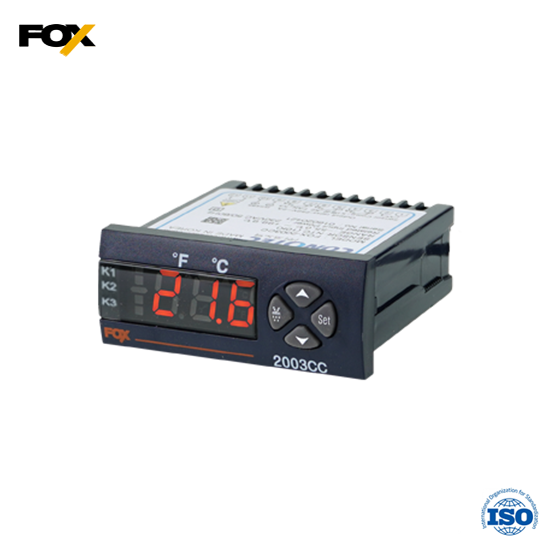

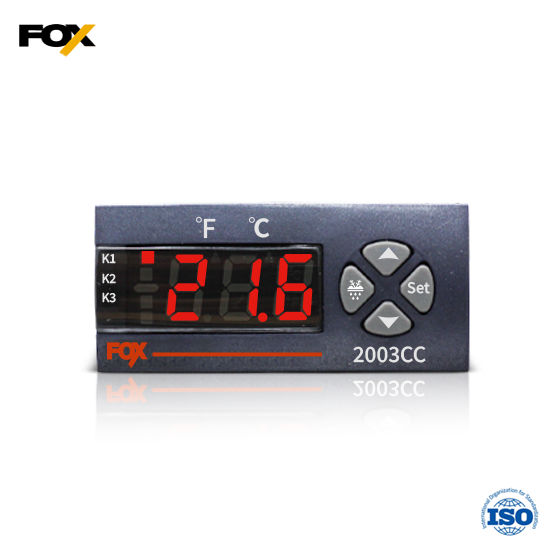

FOX-2003CC
· FOX-2003CC
Features
> Computer(M:1) connection style
with CC Models
> RS485 Communication
(Maximum 1.2km)
> Celsius / Fahrenheit
> Output1 : Cooling
> Output2 : Alarm
> Output3 : FAN
Product Data
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | (Celsius) -55.0 ~ 99.9℃ (Fahrenheit) -67 ~ 212℉ |

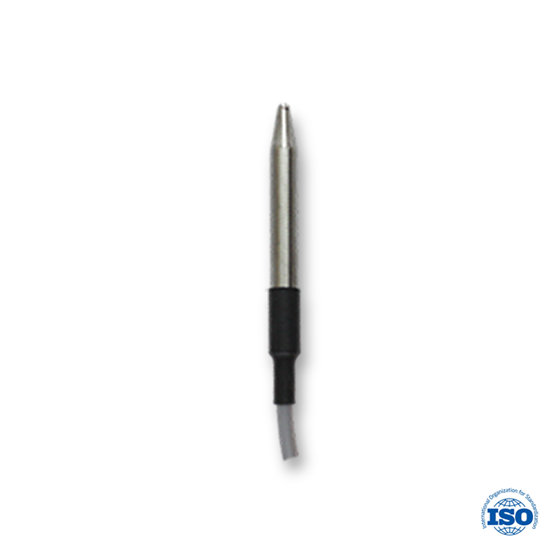

Input sensor | NTC(10KΩ) 3M |
Display Accuracy | ±1%rdg ±1digit |
Output | 3 relay (3a 250VAC 2A) |
Programming | Set / Up / Down / Df Key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Order production | SSR Output (12VDC ±3V 30mA Max.) |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 285g |
Part name
Size & Dimension

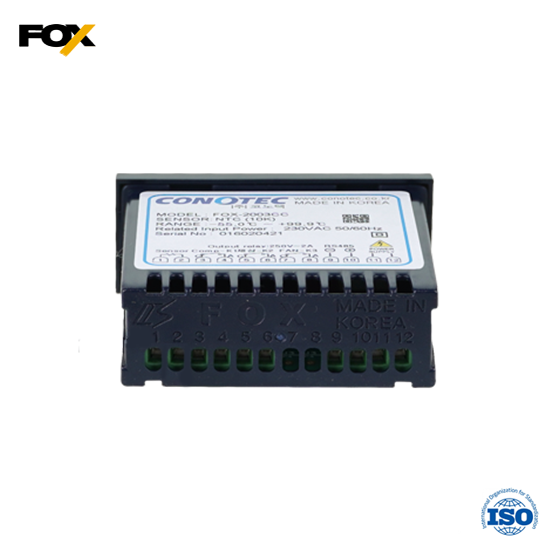

Connection
※ Output : 250VAC 2A
Please make use of the power relay or magnet surely.
