FOX-2108
· FOX-2108
Features
> Restrictive function for the setting range
of the upper or lowest limit
> Lock function of programs
> Large-capacity relay (8A)
> Correction of the present temperature
> Cooling or Heating control
Product Data
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | -55.0 ~ 99.9℃ |
Input sensor | NTC(10KΩ) 3M |
Display Accuracy | ±1%rdg ±1digit |
Output | 1 relay (1a 250VAC 8A) |
Programming | Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Order production | 110VAC 50/60Hz 12V or 24V AC/DC( ±10% ) |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 280g |
Part name

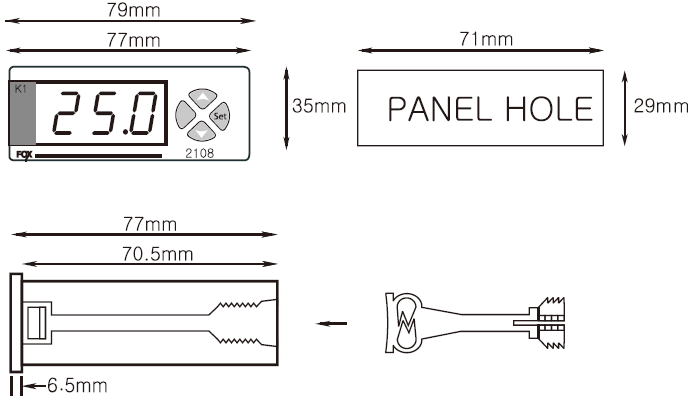

Size & Dimension
Connection
※ Power Supply : 230VAC 50/60Hz
※ Output : 250VAC 10A
Please make use of the power relay or magnet if more than 250VAC 10A
