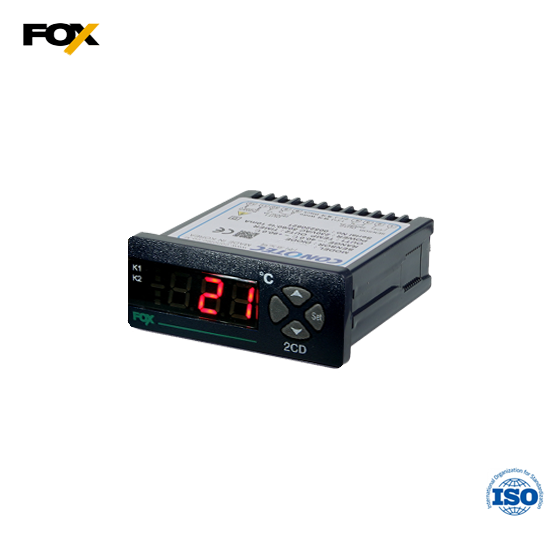

FOX-2CD
· FOX-2CD
Features
> Restrictive function for the setting range
of the upper or lowest limit
> 2-stage temperature control
Product Data
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | -50 ~ 999℃ |
Input sensor | CA(K) |
Display Accuracy | ±1%rdg ±1digit |
Output | 2 relay (2a 250VAC 2A) |
Programming | Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 145g |
Part name
Size & Dimension
Connection
