CNT-1SHR-1
· CNT-1SHR-1
Features
> Selection of dehumi or humidity
> Correction of the present humidity
> Temperature display + Humi
> High temperature (85℃)
> Heating element for prevention of dewy
> RS485 Communication
Product Data
Specification
Operating Range | 0 ~ 100% RH |
Input sensor | DS-SH-series |
Display Accuracy | ±2%rdg ±1digit |
Output | 1 relay (1c 250VAC 2A) |
Programming | Set / Up / Down key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Order production | 110VAC 50/60Hz 12V AC/DC ±10% |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 380g |
Part name

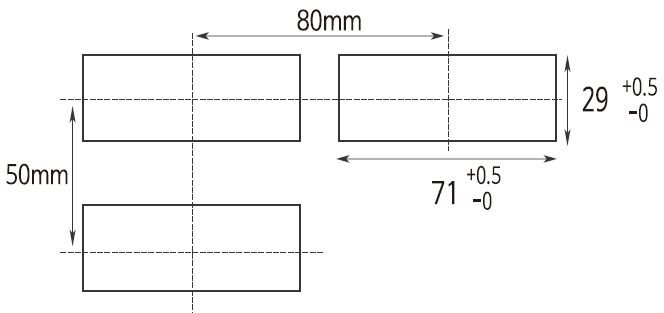

Size & Dimension
Connection
