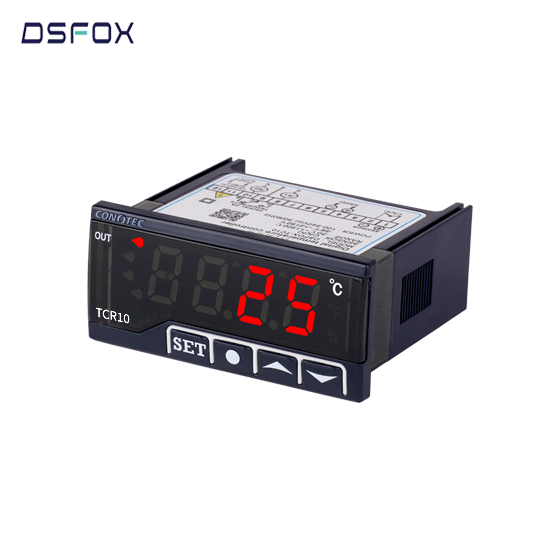

CONOTEC

 Size (mm)

 77(W) x 35(H) x 66.5(D)

 Operating Range

 (Celsius) -50 ~ 1,200℃

 (Fahrenheit) -58 ~ 2,192℉

 Input sensor

 CA(K)

 Display Accuracy

 ±1%rdg ±1digit

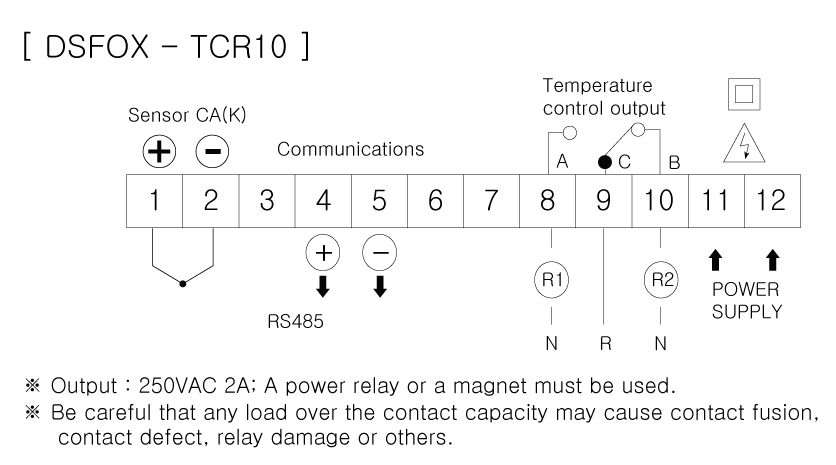

 Output

 1 relay (1c 250 2A)

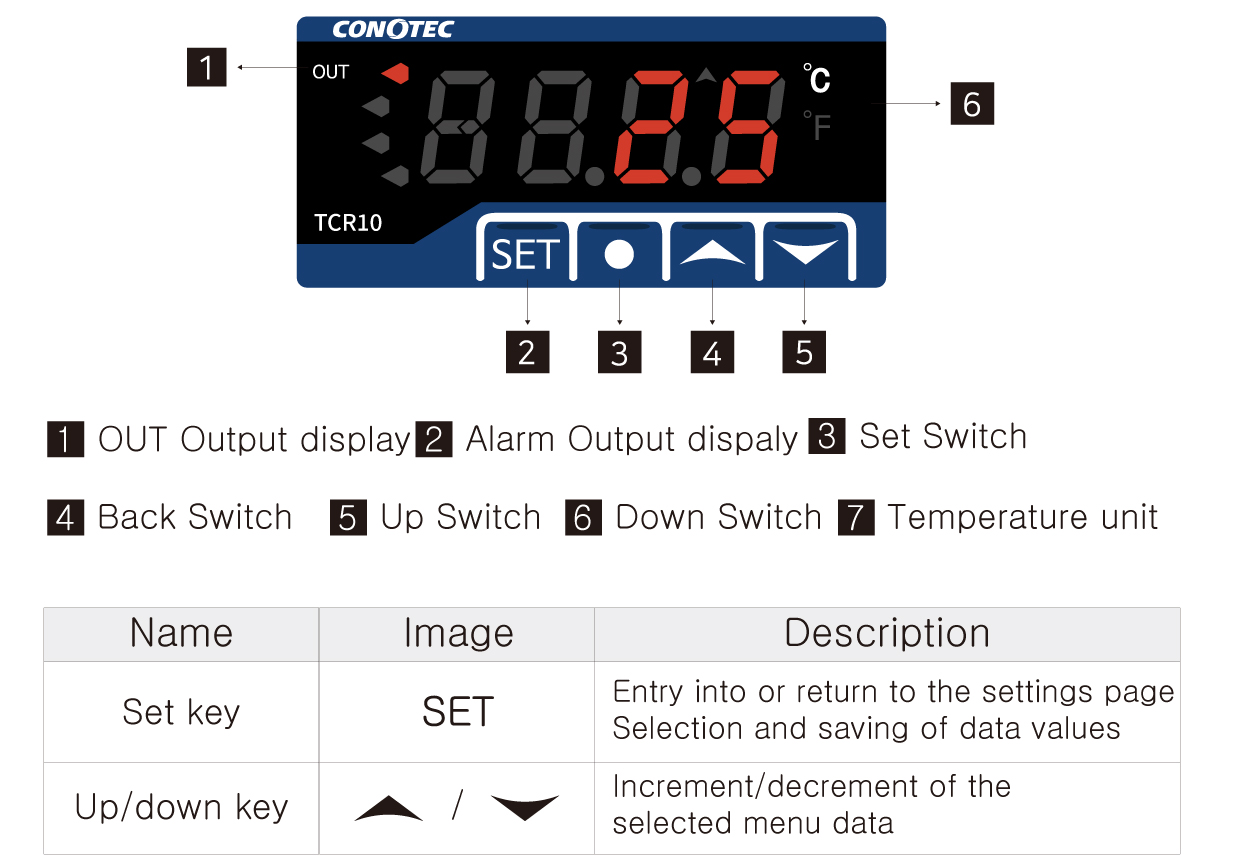

 Programming

 Set / Up / Down / Back Key

 Control Method

 ON / OFF

 Power Supply

 100~240VAC 50/60Hz

 Ambient Temp/Humi

 0 ~ 55℃ (32~131℉)

 35 ~ 80% RH

 Function

 Temp. / 485 Communication

 Cutting size (mm)

 71(W) X 29(H)

 Gross Weight 1PC

 131g
